Get start with XCharts in 5 minute

Return homepage
XCharts Q&A
XCharts API
XCharts Configuration

Installing XCharts

Install XCharts using one of the following methods:

If you just want to run demo and know what does XCharts look like, you can download the project in Github,master is the latest unstable version, release provide stable versions to download. Open with Unity if downloaded.

If you want to join XCharts to your project, you can download the unitypackage from release. XCharts include two unitypackage: XCharts and XChartsDemo. Import the XCharts.unitypackage to your project. XChartsDemo.unitypackage is the packge of Demo, you can import it as you see fit. Also, you can download the source code and copy to your project.

If your project use Unity 2018.3 or above, your can import XCharts by Package Manager, which only contain XCharts core and do not include the XChartsDemo. The specific steps are as follows:

Open the mamnifest.json file in Packages directory, and add:

    "com.monitor1394.xcharts": "https://github.com/monitor1394/unity-ugui-XCharts.git#upm",

Switch to Unity, It may take 3 to 5 minutes to download and compile, and once successful you can start using XCharts.
If you want to delete XCharts, undo step 1.
If you want to update XCharts, delete the contents about com.monitor1394.xcharts under lock of manifest.json file, it will be download and compile again.
You can check update in Component -> XCharts -> Check For Update.

Add a simple LineChart

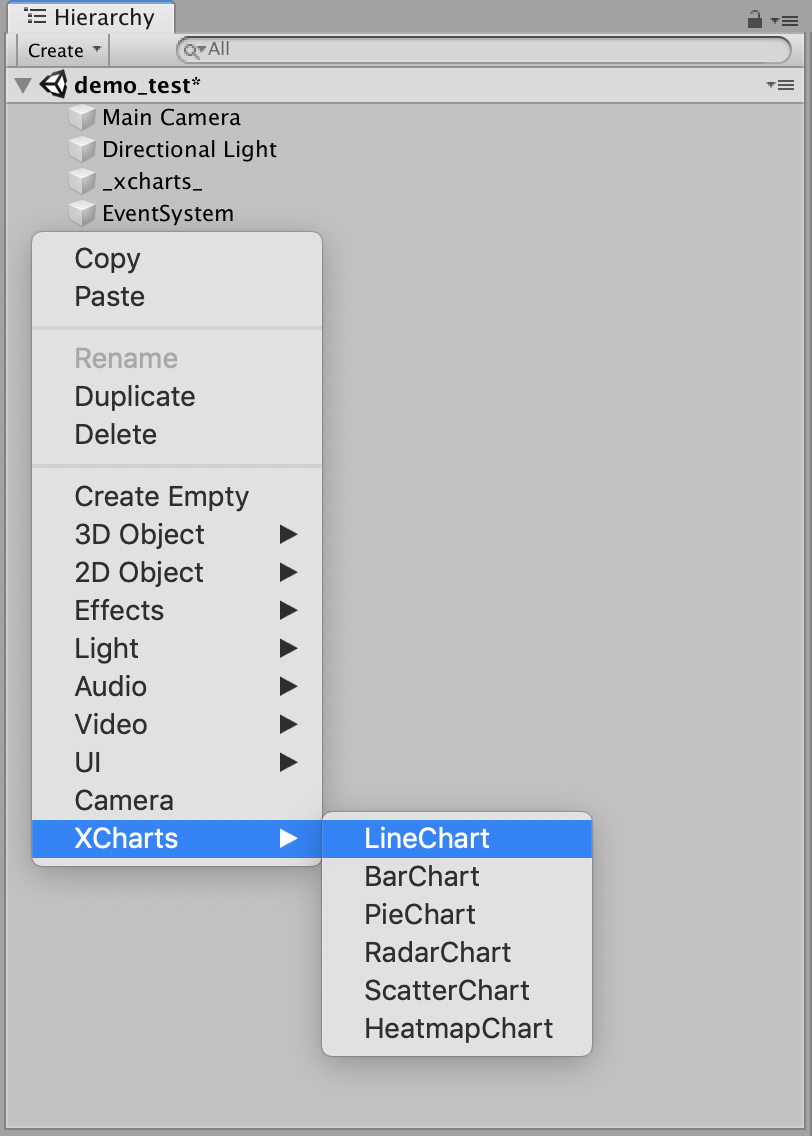

In Hierarchy attempt to right click or menu bar GameObject drop down: XCharts-> LineChart

A simple line chart is done:

You can adjust the parameters of each component in Inspector view, and Game view will fed back the effect of adjustment in real time. XCharts Configuration can see the detailed descriptions of each component parameters.

How to adjust parameters quickly

The first thing to understand is that XCharts is drived by configuration parameter. To get the desired effect, you only need to adjust the configuration parameters under the corresponding component. There is no need to change the nodes attempted by Hierarchy, because those nodes are generated internally by XCharts according to the configuration parameters. If you change it, it will be restored.
Quickly locate the component that corresponds to the effect you want to change. This requires some understanding of the components. For example, we want the end of axis X to display arrows, step 1, axis X map to XAxis0. step 2, axis line map to AxisLine, and then see if AxisLine has any parameters to achieve this effect.
XCharts provides a full range of parameter configurations from global Theme, series Serie, individual data items SerieData. Priority from large to small: SerieData -> Serie -> Theme. Take the color example of ItemStyle, which is preferred if ItemStyle of SerieData is configured with a color value. To determine if the Color value is configured is Color. clear (the Color RGBA is 0).

Add LineChart with code

Add component LineChart to gameObject:

var chart = gameObject.GetComponent<LineChart>();
if (chart == null)
{
    chart = gameObject.AddComponent<LineChart>();
}

Set the title:

chart.title.show = true;
chart.title.text = "Line Simple";

Set the tooltip and legend:

chart.tooltip.show = true;
chart.legend.show = false;

Sets whether to use double axes and the type of axes:

chart.xAxes[0].show = true;
chart.xAxes[1].show = false;
chart.yAxes[0].show = true;
chart.yAxes[1].show = false;
chart.xAxes[0].type = Axis.AxisType.Category;
chart.yAxes[0].type = Axis.AxisType.Value;

Set the dividing line of coordinate axis:

chart.xAxes[0].splitNumber = 10;
chart.xAxes[0].boundaryGap = true;

Clear data, add 'Serie' of type 'Line' to receive the data:

chart.RemoveData();
chart.AddSerie(SerieType.Line);

Add 10 data:

for (int i = 0; i < 10; i++)
{
    chart.AddXAxisData("x" + i);
    chart.AddData(0, Random.Range(10, 20));
}

And then here is a simple line chart:

If there are more than one series in a chart, the Axis data only needs to be added once, instead of repeating multiple loops. Remember: Axis needs to have the same number of data from Serie.

See the complete code in Examples：Example13_LineSimple.cs

You can also use the code to control more parameters. There are many more examples under Examples. All parameters in XCharts Configuration or Inspector can be controlled by code.

In addition, unless customized, it is recommended to call the interfaces in the XCharts API, which do some internal correlation processing, such as refreshing the chart, etc. If you call the interface of an internal component, you'll need to handle other issues like refresh yourself.
